LIONLED Outdoor Dance Floor LED Display P6.25 New Technology
Pixel Pitch: 6.25mm
Module Size: 250mm×250mm×18mm
Cabinet Size: 500mm×500mm×78mm/1000mm×500mm×78mm
Pixel Density: 25600pixels/m2
Brightness : ≥3000cd/m2
Scan: 1/32
Refresh Rate: 3840Hz
Color: Full color
Life Span: 100000 hours
Warranty: 6 Years
Certificate: CE,FCC,ROHS,UL,PSE
Supplier Type: Original manufacturer, ODM,OEM
Media Available: Datasheet, Photo, EDA/CAD Models, Other
Product advantages
Product parameters
| Pixel Pitch | 2.5 | 2.604 | 2.976 | 3.91 | 4.81 | 5.2 | 6.25 |
| Module Resolution(W*H) | 100*100 | 96*96 | 84*84 | 64*64 | 52*52 | 48*48 | 40*40 |
| ModuleSize(W*H*D)mm | 250*250*18 | ||||||
| Panel Resolution(W*H) | 200*200 | 192*192 | 168*168 | 128*128 | 104*104 | 96*96 | 80*80 |
| Panel Size(W*H*D)mm | 500*500*78 | ||||||
| 500*1000*78 | |||||||
| Resolution(dot/m2) | 160000 | 147456 | 112896 | 65536 | 43264 | 36864 | 25600 |
| Protection level | Indoor(IP54) | Indoor(IP54)/Outdoor(IP67) | |||||
| White Balance Brightness(nits) | Indoor≥1300/Outdoor≥3000 | ||||||
| Color Temperature(K) | 6000—9300adjustable | ||||||
| View Angle(°) | >120 | ||||||
| Power Consumption(A/unit module) | DC6∽7 | ||||||
| Max Power Consumption(W/m2) | 800 | ||||||
| Average Power Consumption(W/m2) | 300 | ||||||
| Power Requirements | AC100-240V | ||||||
| Drive Method | Constant current drive | ||||||
| Frame Frequency(Hz) | 50&60 | ||||||
| Refresh Rate | ≥3840/≥7680 | ||||||
| LifeTypical Value(hrs) | 100,000 | ||||||
| Work Temperature(°C) | -20—55 | ||||||
| StorageTemperature(°C) | -30—60 | ||||||
| Defective Ratio | ≤4/100000 | ||||||
| Interaction | Interactive/Non-Interactive | ||||||
Product Features

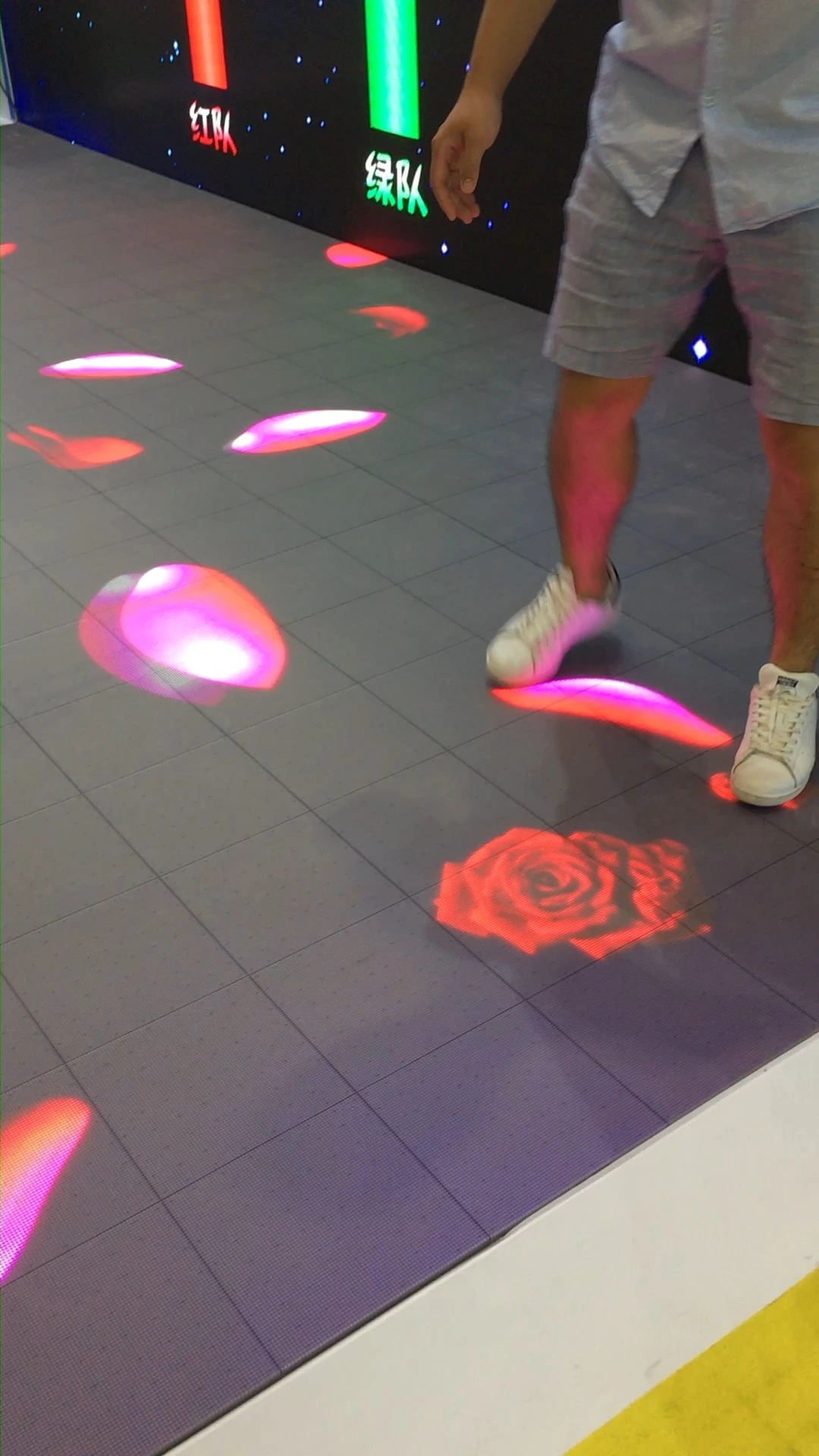

Dance Floor Tile Led Display For
Stage/DJ/Party/Market
Pixel Pitch:P2.5 P2.604 P2.976 P3.91P4.81 P5.2 P6.25
Support GOB And SMD Technology
Super load-bearing:led floor screen is designed according to mechanics, and the ultimate load-bearing capacity is up to 3 tons.
6-Years Warranty. Wear-resistant and flame-retardant:The mask is made of A+ grade imported polymer PC raw materials, which is super wearresistant and flexible, high temperature resistant, cold resistant, and flame retardant
Super anti-skid:The mask is made of A+ grade imported
polymer PC raw materi-als, customized anti-slip design, adaptable to different environments
Extremely interactive:Floor screen interaction speed is
sensitive Multi-channel point-to-point multi-point interaction Unlimited by interaction points
Super anti-skid:The mask is made of A+ grade imported
polymer PC raw materi-als, customized anti-slip design, adaptable to different environments
application
