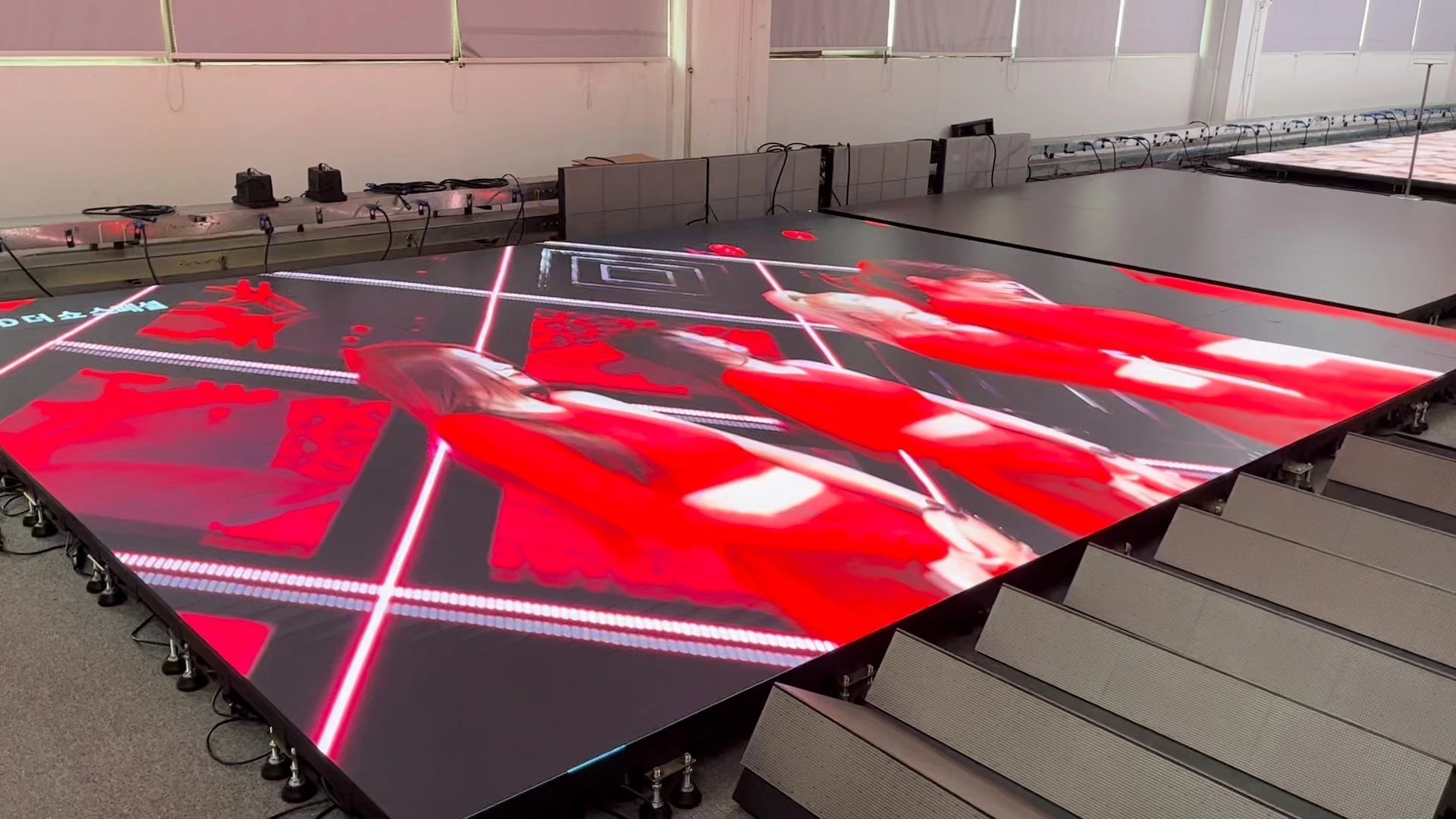

LIONLED Outdoor Dance Floor LED Display P5.2 For Concert Interactive 1

LIONLED Outdoor Dance Floor LED Display P5.2 For Concert Interactive 2

LIONLED Outdoor Dance Floor LED Display P5.2 For Concert Interactive 3

LIONLED Outdoor Dance Floor LED Display P5.2 For Concert Interactive 4

LIONLED Outdoor Dance Floor LED Display P5.2 For Concert Interactive 5

LIONLED Outdoor Dance Floor LED Display P5.2 For Concert Interactive 6

LIONLED Outdoor Dance Floor LED Display P5.2 For Concert Interactive 7

LIONLED Outdoor Dance Floor LED Display P5.2 For Concert Interactive

LIONLED's LED floor tile led display is anti-slip and wear-resistant, the surface is specially treated to be anti-slip and wear-resistant to ensure safety and durability. With pixel pitches ranging from 2.5mm to 6.25mm. The minimum indoor brightness standard for these displays is 1300 nits, and the minimum outdoor brightness standard is 3000 nits. They all have a high refresh rate of 3840Hz, and can also provide an ultra-high refresh rate of 7680Hz, which is very suitable for exhibition display, used in museums, science and technology centers and other places to provide interactive display and information transfer.

Pixel Pitch: 5.2 mm

Module Size: 250mm×250mm×18mm

Cabinet Size: 500mm×500mm×78mm/1000mm×500mm×78mm

Pixel Density: 36864pixels/m2

Brightness : ≥1300cd/m2

Scan: 1/32

Refresh Rate: 3840Hz

Color: Full color

Life Span: 100000 hours

Warranty: 6 Years

Certificate: CE,FCC,ROHS,UL,PSE

Supplier Type: Original manufacturer, ODM,OEM

Media Available: Datasheet, Photo, EDA/CAD Models, Other

Inquiry

Write a Review

Product advantages

Dance Floor tile LED display can be equipped with touch functions or sensors to enable interaction with the audience, such as games, information queries, etc.

Dance Floor tile LED display is usually made of wear-resistant and pressure-resistant materials, and can withstand heavy weight and frequent trampling.

Dance Floor tile LED display is suitable for commercial advertising, public art, transportation hubs, entertainment venues and other fields.

Product parameters

Pixel Pitch	2.5	2.604	2.976	3.91	4.81	5.2	6.25
*Module Resolution(WH)**	100*100	96*96	84*84	64*64	52*52	48*48	40*40
*ModuleSize(WHD)mm*	25025018
*Panel Resolution(WH)**	200*200	192*192	168*168	128*128	104*104	96*96	80*80
*Panel Size(WHD)mm*	50050078
	500100078
Resolution(dot/m2)	160000	147456	112896	65536	43264	36864	25600
Protection level	Indoor(IP54)			Indoor(IP54)/Outdoor(IP67)
White Balance Brightness(nits)	Indoor≥1300/Outdoor≥3000
Color Temperature(K)	6000—9300adjustable
View Angle(°)	>120
Power Consumption(A/unit module)	DC6∽7
Max Power Consumption(W/m2)	800
Average Power Consumption(W/m2)	300
Power Requirements	AC100-240V
Drive Method	Constant current drive
Frame Frequency(Hz)	50&60
Refresh Rate	≥3840/≥7680
LifeTypical Value(hrs)	100,000
Work Temperature(°C)	-20—55
StorageTemperature(°C)	-30—60
Defective Ratio	≤4/100000
Interaction	Interactive/Non-Interactive

Product Features

Dance Floor Tile Led Display For

Stage/DJ/Party/Market

Pixel Pitch:P2.5 P2.604 P2.976 P3.91P4.81 P5.2 P6.25

Support GOB And SMD Technology

Super load-bearing:led floor screen is designed according to mechanics, and the ultimate load-bearing capacity is up to 3 tons.

6-Years Warranty. Wear-resistant and flame-retardant:The mask is made of A+ grade imported polymer PC raw materials, which is super wearresistant and flexible, high temperature resistant, cold resistant, and flame retardant

Super anti-skid:The mask is made of A+ grade imported

polymer PC raw materi-als, customized anti-slip design, adaptable to different environments

Extremely interactive:Floor screen interaction speed is

sensitive Multi-channel point-to-point multi-point interaction Unlimited by interaction points

Super anti-skid:The mask is made of A+ grade imported

polymer PC raw materi-als, customized anti-slip design, adaptable to different environments
