LIONLED Outdoor 1ft*1ft LED Display P6.35 IP68 For Advertising 1

LIONLED Outdoor 1ft*1ft LED Display P6.35 IP68 For Advertising 2

LIONLED Outdoor 1ft*1ft LED Display P6.35 IP68 For Advertising 3

LIONLED Outdoor 1ft*1ft LED Display P6.35 IP68 For Advertising 4

LIONLED Outdoor 1ft*1ft LED Display P6.35 IP68 For Advertising 5

LIONLED Outdoor 1ft*1ft LED Display P6.35 IP68 For Advertising 6

LIONLED Outdoor 1ft*1ft LED Display P6.35 IP68 For Advertising 7

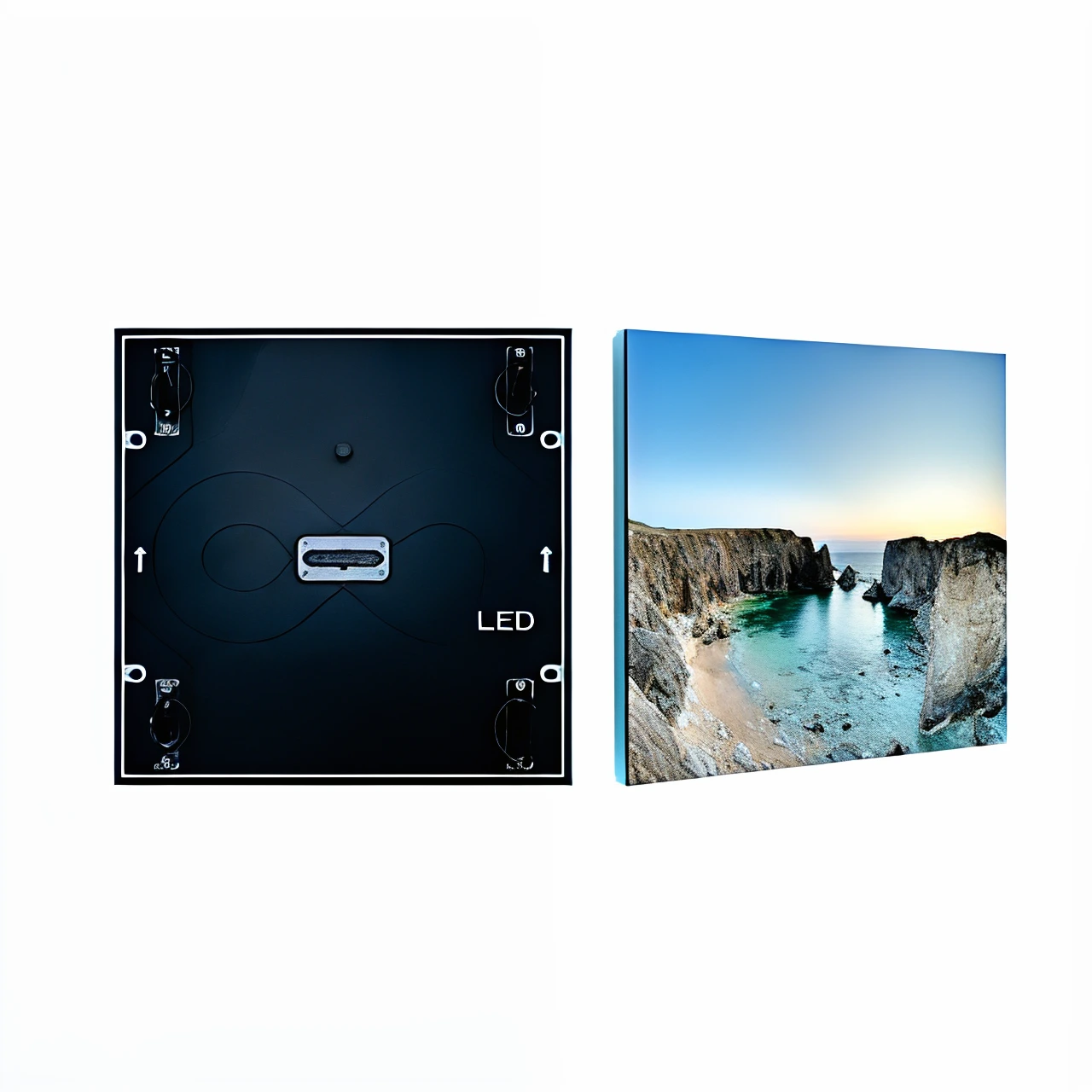

LIONLED Outdoor 1ft*1ft LED Display P6.35 IP68 For Advertising

LIONLED 1ft*1ft Outdoor P6.35 IP68 LED Display is an advanced display designed for outdoor advertising. It uses new cooling technology to extend its service life and simplify installation and maintenance. It has high-definition display effects, wide viewing angles, and IP68-level waterproof and dustproof performance. It is suitable for a variety of scenarios such as commercial streets and shopping centers. It attracts customers with its outstanding visual impact, enhances brand image and market influence, and is an extremely cost-effective outdoor advertising solution.

Pixel Pitch：6.35mm

Module Size: 1ft×1ft(304.8mm×304.8mm)

Cabinet Size： 2ft×4ft/Custom Made

Pixel Density：24800pixels/m²

Brightness：7000-10000cd/m²

Scan: 1/6

Refresh Rate：1920Hz-3840Hz

Color：Full color

Waterproof：IP68

Life Span: 100000 hours

Warranty：6 Years

Certificate：CE,FCC,ROHS,UL,PSE

Supplier Type：Original manufacturer,ODM,OEM

Media Available：Datesheet,Photo,EDA/CAD Models,Other

Module Size:

1ft*1ft

Cabinet size:

2ft×4ft/Custom Made

Pixel Pitch:

6.35mm

Brightness:

8000cd/sqm

Refresh rate:

3840Hz

Color:

Full color

Waterproof:

Back IP68 Front lP68

Life span:

100000 Hours

Warranty:

6 Years

Application:

Outdoor Advertising

Supplier Type:

Original manufacturer, ODM,OEM

Media Availa:

datasheet, Photo, EDA/CAD Models, Other

Specification:

Digital sign

Inquiry

Write a Review

Product advantages

New cooling technology greatly increases service life and reduces failure frequency .

Simple front-end installation and front-end maintenance.

The aluminum profile panel supports the wall-mounted frame for easy installation.

Adjustable panel size based on US unit 1ft x 1ft mm modules.

Can be used in the US digital signage market, enabling advertisements with vivid graphics with a wide field of view.

Product parameters

Pixel Pitch(mm)	4.76	6.35	9.5
LED Type	SMD1921	SMD2727
Pixel Density(pixles/m²)	44010	24800	11022
Brightness(cd/m²)	7000-10000
Scan	1/8	1/6	1/2
Refresh Rate (Hz)	1920Hz-3840Hz
*Cabinet Dimension(WH)(mm)**	Aluminum Extrusion Cabinet
Cabinet Size (mm)	2ft×4ft/Custom Made
Module Size (mm)	1ft×1ft（304.8mm×304.8mm）
Weight (KG/cabinet)	24KG
Maintenance method	Front/Back
Horizontal/Vertical Viewing Angle	≥140°/≥120°
Gray Scale	14
Protection Level	Ip68
Colour Temp	6000~12000K
Input Signal	HDMI.DVI/VGA.RGBHV Composite,SVIDEO.YPbPr(HDTV) etc...
Max Power Consumption(W/m²)	500
Avg.Power consumption(W/m²)	150

Product Features

Light,Thin And Cost-Saving The single cabinet is 25 kg and 4.7Inch(120mm)thickness, saving transportation and installation cost.

1 FT (304.8 MM) by 1 FT(304.8 MM)module size. Signal and power cableintegrated, good for waterproof and maintenance.

product details

IP68 high grade waterproof and salt spray proof.

23333

Front and rear maintenance, Remove the module within 10 seconds.

Ultra-strong Ability For Anti High &Low Temperature.Under high temperature 180F and low temperature -40F severe surroundings,the performance is still in good working status.

UItra-High Brightness, 6000-10000cd.

Low Power Consumption,Common cathode power solution,2.8V+3.8V input,achievinglow power consumption (Average 150W/sqm).

图片 12~1

Ultra-Strong Ability For Anti High &Low Temperature.Under High Temperature 180F And Low Temperature -40F Severe Surroundings,The Performance Is Still In Good Working Status.

application
