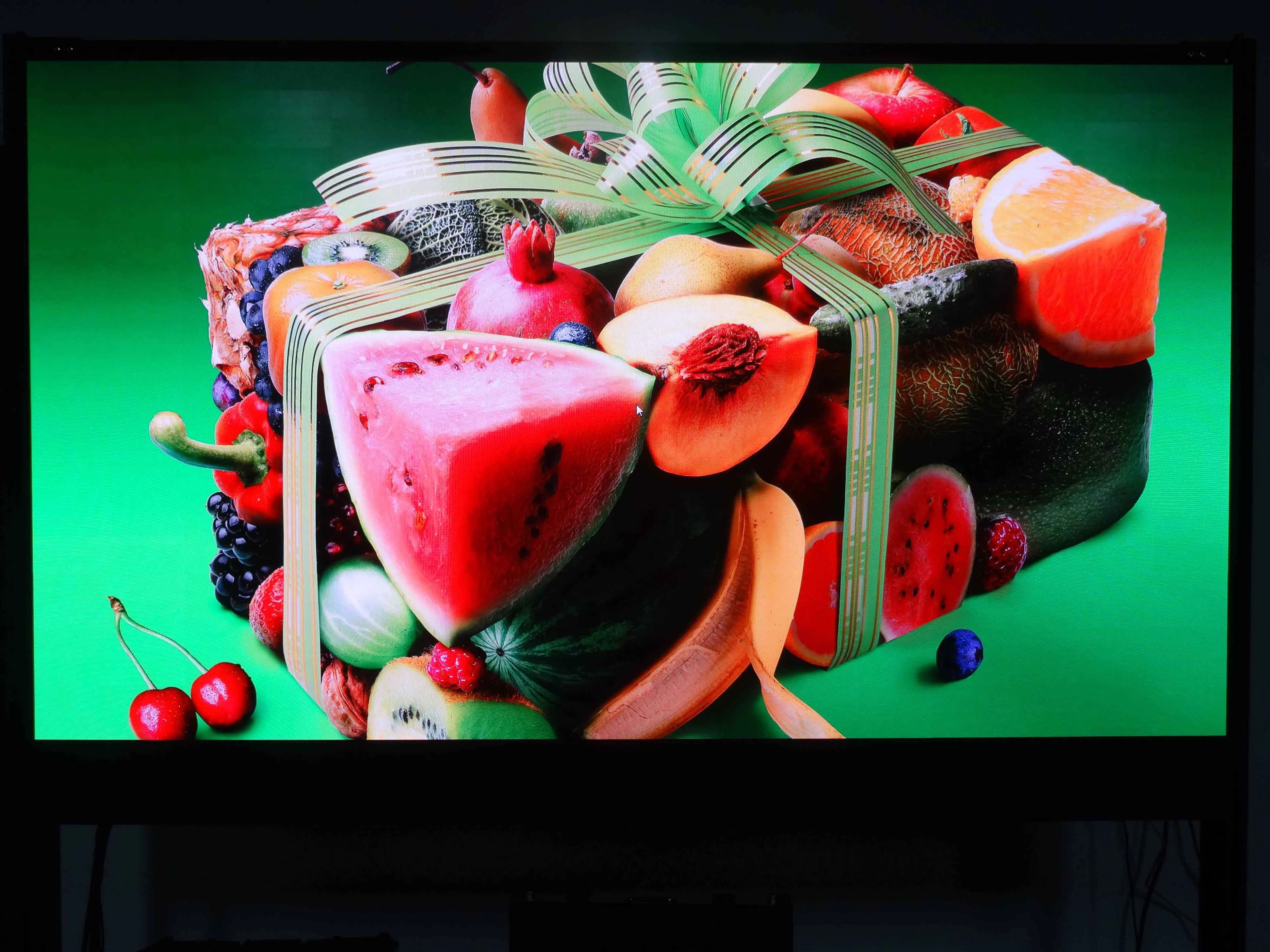

LIONLED Indoor Fixed Led Display COB P0.93 HD Small Pixels
The LIONLED COB P0.93 HD Indoor Fixed Led Display gained a non-reflective surface and produced vivid colors for ture to nature images.With brightness in the 500-1200nit range, a uniform 3840Hz or 1920Hz high refresh rate, and front maintenance, it boasts ultra-high resolution and utilizes state-of-the-art COB technology.It is a great choice for school, shopping advertising, conference rooms,exhibition hall and other indoor locations.
Pixel Pitch: 0.9375mm
Module Size: 150mmx168.75mm
Cabinet Size: 600mmx337.5mmx32.5mm
Pixel Density: 1137778pixels/m²
Brightness: 500-1200cd/m²
Scan: 1/60
Refresh Rate: ≥3840Hz
Color: Full Color
Life Span: 100000 hours
Warranty: 6 years
LED Type: Flip Chip COB Common--Cathode
Certificate: CE,FCC,ROHS,UL,PSE
Supplier Type: Original manufacturer, ODM,OEM
Media Available: Datasheet, Photo, EDA/CAD Models, Other
Product advantages
Product parameters
| Pixel Pitch(mm) | 0.9375 | 1.25 | 1.56 | 1.87 |
| LED Type | Flip Chip COB Common-Cathode | |||
| Pixel Density(pixles/m²) | 1137778 | 640000 | 409600 | 284444 |
| Brightness(cd/m²) | 500-1200 | |||
| Scan | 1/60 | 1/45 | 1/48 | 1/30 |
| Refresh Rate (Hz) | ≥3840HZ | |||
| Cabinet Resolution(W·H) | 640*360 | 480*270 | 384*216 | 320*180 |
| Cabinet Size (mm) | Die casting aluminum cabinet 600*337.5*32.5mm | |||
| Module Size (mm) | 150*168.75mm | |||
| Weight (lb/cabinet) | 7.5KG | |||
| Maintenance Method | Front | |||
| Horizontal/vertical Viewing Angle | 170°/170° | |||
| Gray Scale | 14-16 | |||
| Colour Temp | 3200-9300 | |||
| Contrast Ratio | >10000:1 | |||
| Input Signal | HDMIDVINVGARGBHV Composite,SVDEO,YPbPr(HDTV) etc... | |||
| Dot By Dot Color Calibration | Yes | |||
| Module Power Supply Voltage D | DC2.8V+3.8V | |||
| Brightness Calibration | Yes | |||
| Max Power Consumption(W/m²) | ≤300 | |||
| Avg.Power Consumption(W/m²) | ≤100 | |||
Product Features
Indoor COB Led Display For Schools/Showroom/Wedding/conference room
Pixel Pitch:P0.9375 P1.25 P1.56 P1.87
cabinet size:600mm×337.5mm×32.5mm
Support 90° LED Screen , cube LED Screen
Module No plastic housing, wire design, high precision, high stability, beautiful interior
Convenient module assembly, high surface flatness of the screen; quick installion and easy maintenance
6-Years Warranty. support double backup of power supply and control system
