LIONLED Outdoor Transparent LED Display Low Consumption P20 Videowall

The LIONLED low consumption Outdoor Transparent LED Display P20 uses modular design, easy to maintain and replace, reduce maintenance costs. It has four regular pixels pitch.Besides it also supports customized size. With a range of brightness 6000-10000nits. Typically used in stadiums for event information, advertising and to enhance the viewing experience.

Pixel Pitch: 20mm-20mm

Module Size: 125mm×500mm

Cabinet Size: 500mm×1000mm

Pixel Density: 2500pixels/m²

Brightness: 10000cd/m2

Refresh Rate: 3840Hz

Color：Full Color

Waterproof：IP67

Life Span：100000 hours

Warranty： 2 years

Certificate：CE,FCC,ROHS,UL,PSE

Supplier Type：Original manufacturer, ODM,OEM

Media Available：Datasheet, Photo, EDA/CAD Models, Other

Inquiry

Write a Review

Product advantages

Outdoor transparent led display all adopt self- made LED lamp.It has long lifespan, low attenuation, good weather fastness ability

Full Aluminum structure parts, excellent corrosion resistance, high heat radiation efficiency make the screen can work at a terrible environment for long time.

Product parameters

Pixel Pitch	P15	P20	P31-15	P31
LED	DIP346/SMD3535
Pixel Pitch	15.6-15.6mm	20-20mm	31-15.6mm	31-31mm
Pixel Resolution	4096pixel/m2	2500pixel/m2	2048pixel/m2	1024pixel/m2
Module Dimension	500mmx1000mm(WXH)
Pixel Composing	1R1G1B/Full Color
Cabinet Material	6061 Stretch aluminium 6061
Cabinet Weight	6-9kg/sqm
Viewing Angle	H>110°V>60°
Color Temperature	6000-9500K
Gray Scale	14-16bit
Max Power Consumption	300-400W/m2
Average Power Consumptionn	100-150W/m2
Refresh Rate	≥1920Hz
Brightness	6000-7500nits
Ingress Protection	IP67 Double side
Operating Temperature	40℃~85℃
Operating Humidity	10%~90%RH
Input Voltage	AC220V/110V±15%47-64Hz
NTBF	≥50000 hours
Life Time	100000 hours

Product Features

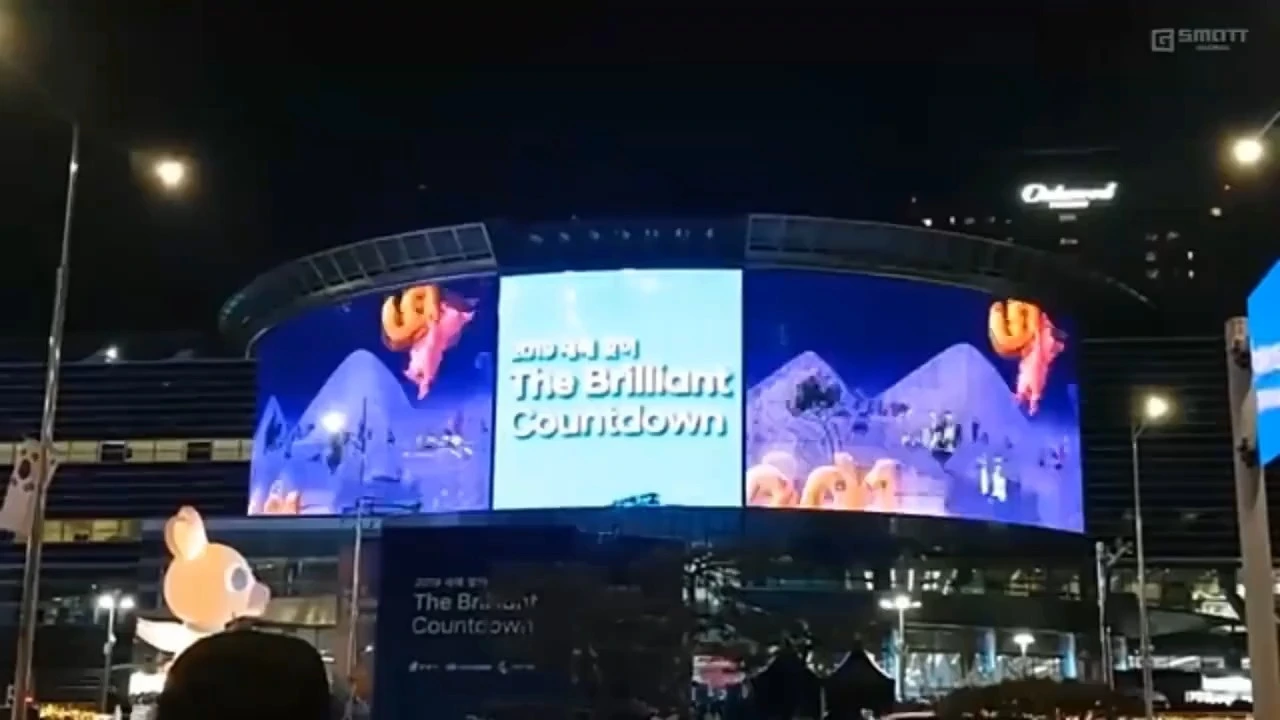

Outdoor Transparent Led Sign For

Car Store/Station facade/Express way advertising

Pixel Pitch:

P15.6-15.6mm p20-20mm P31-15.6mm p31-31mm

Cabinet Size:

1000mm x 500mm(W*H)

39.4in x 19.7in(W*H)

1. Extremely light weight------16kgs/sqm, can be install onto building glass wall

2. Stability long life time-------Low consumption of electricity to increase the lifetime of LEDs

1. Fast installation ------ Average 5-10 seconds to install an individual cabinet.

2. Simple structure ------- Reduce the cost of steel structure (Average 20 USD per sqm)

The outdoor transparent LED display is energy-saving and labor-saving, with an average of 160W per square meter, reducing labor time and cost by 65%. It adopts a standard display size design, displays images without compression, is clear and real, presents perfect visual effects, is easy to install, and has bright colors. It has become the preferred LED display product for glass windows! Unlimited creativity, leading the trend.
