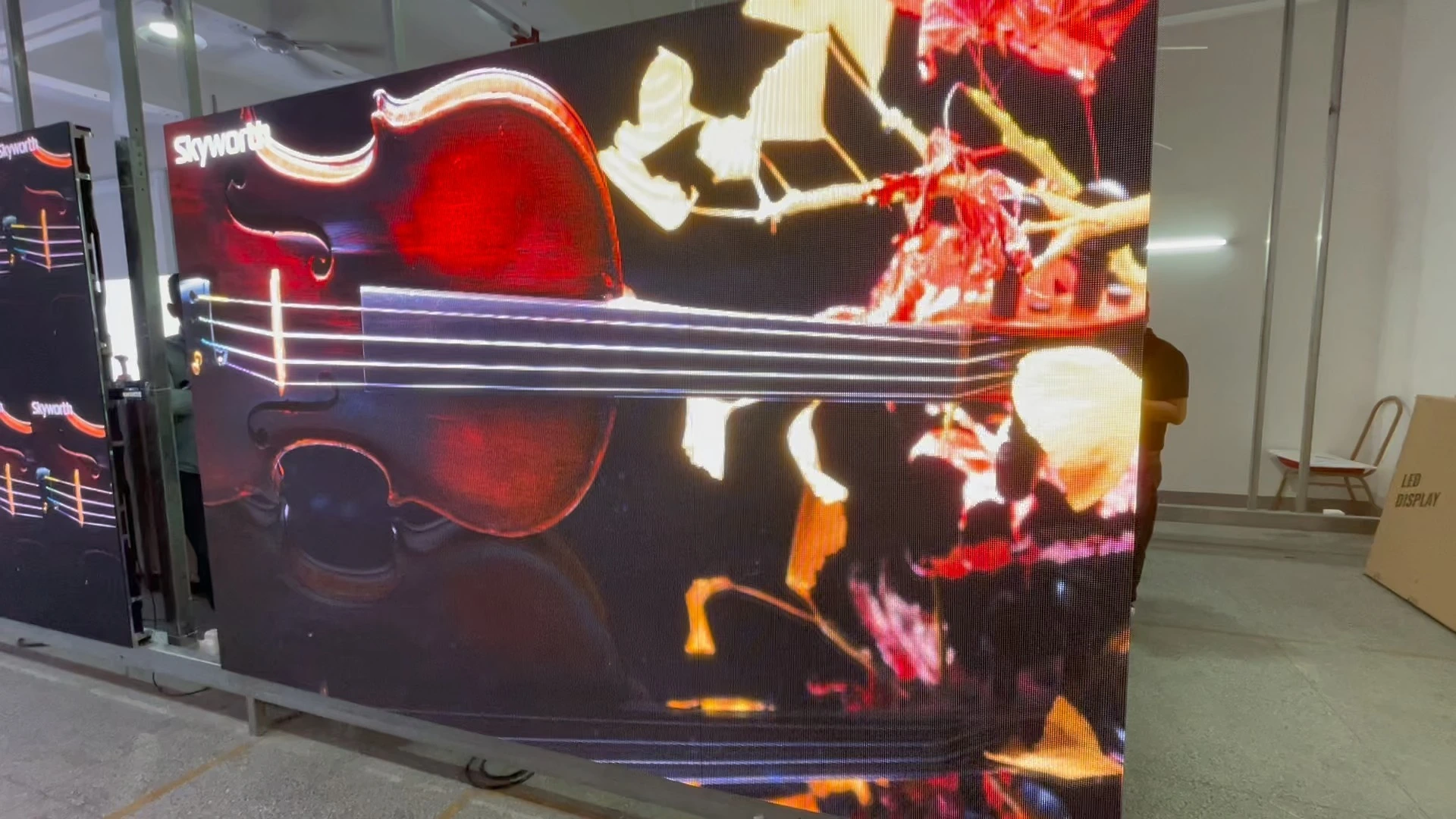

LIONLED Outdoor Fixed LED Display P8 Billboard For Square Advertising
The LIONLED P8 outdoor fixed LED display offers a clear picture with a wide field of view for advertising. this product within a range of P4.44-10. With high Brightness of 6500-10000nits. Its ultra-thin panel saves mounting space and supports simple front/back installation, as well as arc installation. The aluminum profile panel also supports wall-mounting frame easy installation, with an adjustable panel size based on modules of 480 x 320 mm. It's usually for hotel facade building wall and outdoor street billboard.
Pixel Pitch：8mm
Module Size: 480mm x 320mm
Cabinet Size： 960mmx960mmx77mm
Pixel Density：15625pixels/m²
Brightness：5500-6000cd/m²
Scan: 1/5
Refresh Rate: 3840Hz
Color：Full Color
Waterproof： IP65
Life Span: 100000 hours
Warranty：6 Years
Certificate：CE,FCC,ROHS,UL,PSE
Supplier Type：Original manufacturer,ODM, OEM
Media Available：Datasheet, Photo, EDA/CAD Models, Other
Product advantages
Product parameters
| Pixel Pitch(mm) | 4.44 | 5.7 | 6.66 | 10 |
| LED Type | SMD | |||
| Pixel Density(pixles/m²) | 50635 | 30625 | 22500 | 10000 |
| Brightness(cd/sqm) | 6500-10000 | |||
| Scan | 1/9 | 1/7 | 1/6 | 1/2 |
| Refresh Rate (HZ) | 3840Hz | |||
| Cabinet Resolution(W·H） | 216*216 | 168*168 | 144*144 | 96*96 |
| Cabinet Size (mm) | Die casting aluminum cabinet 960*960*77mm | |||
| Module Size (mm) | 480*320mm | |||
| Weight (lb/cabinet) | 25KG | |||
| Maintenance Method | Front/Back | |||
| Horizontal/Vertical Viewing Angle | ≥140°/≥140° | |||
| Gray Scale | 14 | |||
| Protection Level | IP65 | |||
| Colour Temp | 6000-12000K | |||
| Input Signal | HDMI.DVIVGA.RGBHV Composite,SVIDEO,YPbPr(HDTV) etc... | |||
| Max Power Consumption(W/m²) | 650 | |||
| Vg.Powe Consumption(W/m²) | 220 | |||
