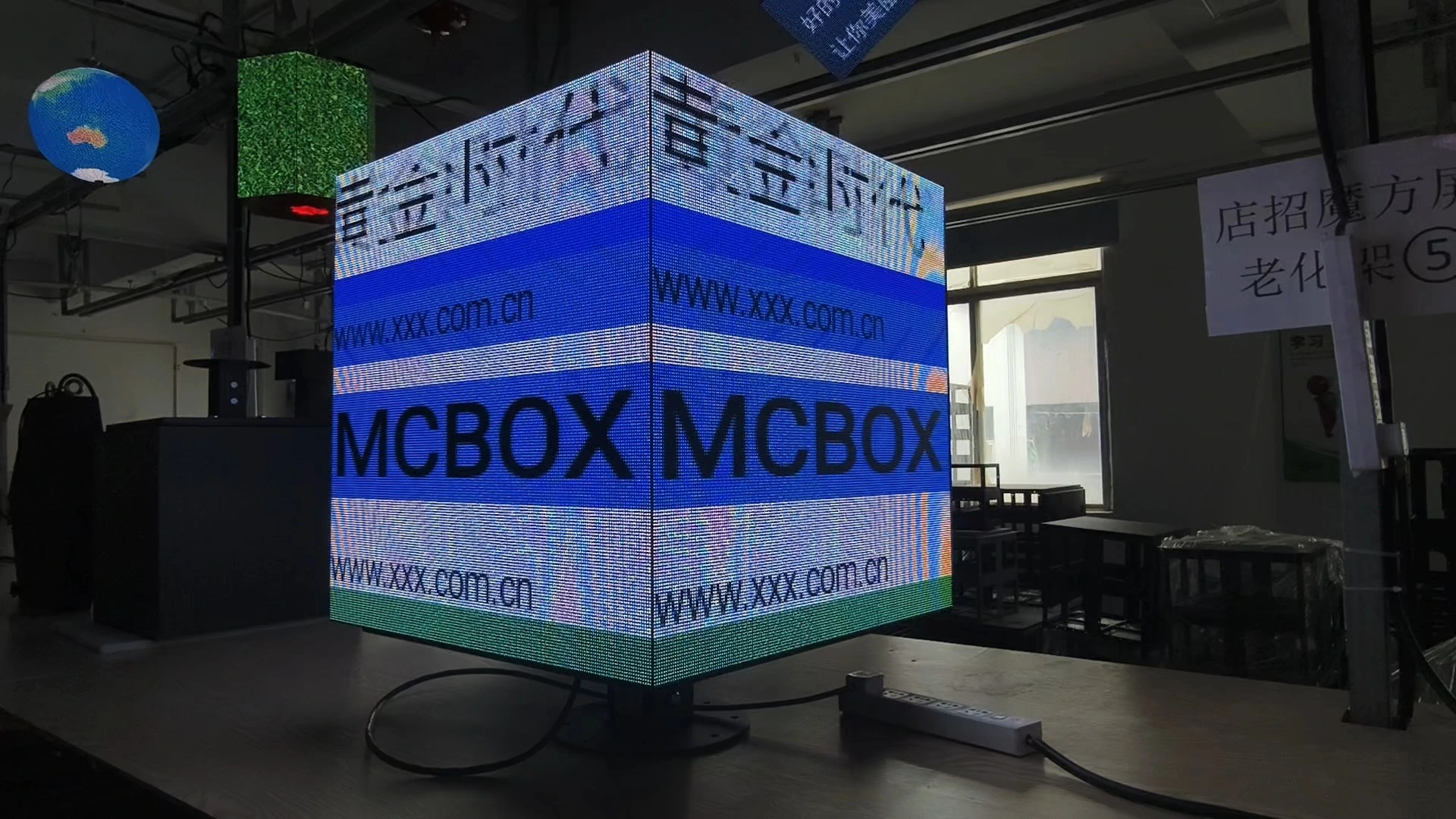

LIONLED Indoor Cube LED Display Screen P2.604 High Quality For Advertising
LIONLED's Cube LED displays are available in pixel counts from P1.5 to P4, with stable brightness, strong heat dissipation, and are completely anti-static. With indoor and outdoor options, as well as four, five or six sides according to the actual use, the Cube LED display has a refresh rate of up to 3840Hz, which is ideal for shopping malls, shelves, exhibitions and other places.
Pixel Pitch: P2.604
Module Size（mm）: 250×250
Cabinet Size（mm）: 500×500×5（4）/750×750×5（4）
Resolution: 192×192/288×288
Brightness: 700-1000cd/m²
Refresh Rate：3840Hz
Color：Full Color
Life Span： 100000 hours
Warranty： 6 years
Certificate：CE,FCC,ROHS,UL,PSE
Supplier Type：Original manufacturer, OEM,ODM
Media Available：Datasheet, Photo, EDA/CAD Models, Other
Product advantages
Product parameters
| Pixel Pitch(mm) | P1.5 | P1.538 | P1.86 | P2 | P2.5 | P2.604 | P2.976 | P3 | P3.91 | P4 |
| Resoution（dots） | 128*128 | 208*208 | 172*172 /344*344 |
160*160 | 64*64 /192*192 /192*192 /256*256 |
192*192 /288*288 |
168*168 | 64*64 192*192 /192*192 /256*256 |
127*127 | 128*128 |
| Refresh Rate（hz） | 3840 | 1920 | 3840 | 1920 | 3840 | 1920 | ||||
| Product Size（mm） | 192*192*5 | 320*320*5(4) | 320*320*5(4) /640*640*5(4) |
320*320*5(4) | 160*160*5（4） /320*320*5（4） /480*480*5(4) /640*640*6（4） |
500*500*5（4） /750*750*5（4） |
500*500*5（4） | 192*192*5(4) /384*384*5(4) /576*576*5（4） /768*768*5(4) |
500*500*5（4） | 512*512*5（4） |
| Application | indoor | |||||||||
| Weight（KG） | 20KG/22KG | 24KG/26KG | 24KG/26KG 60KG/63KG |
24KG/26KG | 7KG 21KG/22KG 34KG/36KG 60KG/63KG |
35KG/37KG | 35KG/37KG | 9KG 28KG/29KG 44KG/46KG 73KG/75KG |
35KG/37KG | 36KG/38KG |
| Package Size（mm） | 262*262*392 | 390*390*520 | 390*390*520 /710*710*840 |
390*390*520 | 230*230*360 /390*390*520 /550*550*680 /710*710*840 |
570*570*700 /950*950*1150 |
570*570*700 | 262*262*392 /450*450*590 /646*646*776 /838*838*968 |
570*570*700 | 580*580*720 |
| Avg.Power Consumption(W） | 600 | |||||||||
| Max.Power Consumption(W） | 1200 | |||||||||
| Controll | 4G and Wifi | |||||||||
| Input Sigal | Network communication LANlWiFi/4G access network Program partition Supports arbitrarypartition of program port, supportsarbitrary layer of window Video format MPG.MOV.MP4.MKV Video format Audio format MPEG-1Layer ll, AAC and other picture formats Support jpg, png, gif, etc. |
|||||||||
| Pixel Pitch(mm) | P2.5 | P2.5 | P3 | P3.91 | P4 |
| Resoution（dots） | 128*128 /192*192 /256*256 |
192*192 /256*256 |
128*128 /192*192 |
127*127 /191*191 |
160*160 |
| Refresh Rate（hz） | 3840 | 1920 | |||
| Product Size（mm） | 320*320*5（4） /480*480*5（4） /640*640*5（4） |
480*480*5（4） /640*640*5（4） |
384*384*5（4） /576*576*5（4） |
500*500*5（4） /750*750*5（4） |
640*640*5（4） |
| Application | Outdoor | ||||
| Weight(KG) | 24KG/26KG 50KG/52KG 70KG/72KG |
50KG/52KG | 32KG/34KG 57KG/59KG |
53KG/55KG 78KG/80KG |
65KG/67KG |
| Package Size（mm） | 390*390*520 /570*570*710 /710*710*910 |
570*570*710 | 450*450*590 /640*640*890 |
570*570*710 /814*814*1070 |
710*710*840 |
| Avg.Power Consumption(W） | 600 | ||||
| Max.Power Consumption(W） | 1200 | ||||
| Controll | 4G and Wifi | ||||
| Input Sigal | Network communication LANlWiFi/4G access network Program partition Supports arbitrarypartition of program port, supportsarbitrary layer of window Video format MPG.MOV.MP4.MKV Video format Audio format MPEG-1Layer ll, AAC and other picture formats Support jpg, png, gif, etc. |
||||
Product Features
Ruilk's Cube Led Display For
Party/Shop/market/Exhibition
Pixel Pitch:P1.5,P1.538,P1.86,P2,P2.5,P2.604,P2.976,P3,P3.91,P4
GOB And SMD Technology
Truly colorful screen,360° view angle, all- round display
6-Years Warranty. Use high-quality LED, have high efficiency luminescence, decreased attenuation of brightness, high stability and reliability
Right Angle And Rubik's Cube Splicing
Could be made as any creative shapes for any installation site.
Unique and novel shape can attract customers the fastest and bring great business value
